Advanced counting

FootfallCam 3D Pro2

High-accuracy 3D stereo sensor for visitor counting in demanding high-traffic environments.

Explore features
99,5%
Up to 99,5% accuracy
Patented 3D stereo technology reliably separates individuals even in crowded conditions.
IP64
IP65 rated
Suitable for entrances to shopping centres, airports, stadiums and industrial environments.
Napajanje
Wi-Fi & PoE
Flexible installation without special cabling. Plug-and-play integration with the Sauron platform.
GDPR
GDPR compliant
The device processes only anonymous counts – no images or video footage is ever stored.

Key features

FootfallCam 3D Pro2 was designed for high-traffic environments where standard sensors fall short.

3D stereo detection

Two lenses create a depth map, reliably distinguishing heads from hands, bags and trolleys. Works in all lighting conditions.

Bi-directional counting

Accurately detects entries and exits simultaneously, even when multiple people pass through at once.

Real-time data

Data is streamed directly to the Sauron platform and visible live through the web dashboard.

Wide field of view

Covers entrances up to 10 metres wide with a single sensor. Suitable for revolving doors, terminal gates and industrial passages.

Easy installation

Ceiling or door-frame mounting, powered via PoE or USB-C. Configuration takes under 15 minutes.

Redundant storage

Built-in local memory ensures data capture even when the internet connection is unavailable.

Analytics & reporting

Automated weekly and monthly data exports to Excel or PDF. Period-over-period and location comparisons with a single click.

API integration

A REST API makes it easy to integrate with your existing systems – ERP, POS, BMS or custom-built solutions.

Multi-site management

Manage all your locations from one central dashboard. Compare data across branches, departments or countries.

Technical specifications

An industrially designed sensor for demanding environments.

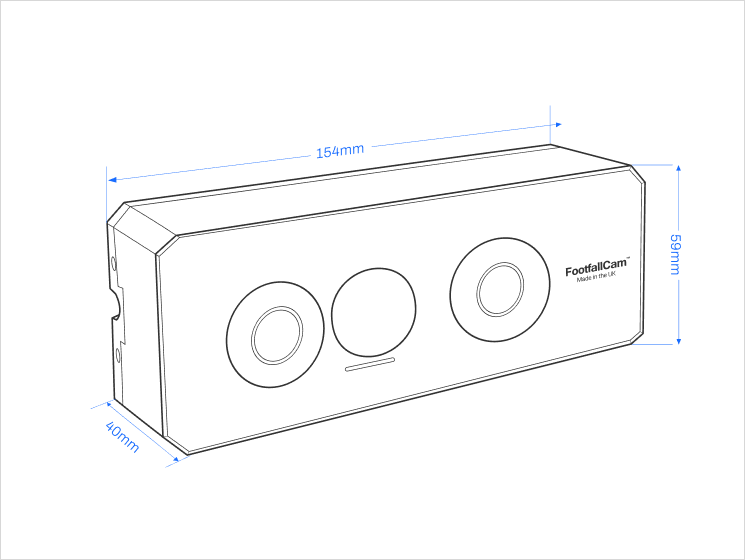

FootfallCam 3D Pro2 side view
FootfallCam 3D Pro2
www.footfallcam.com →
Sensor 3D stereo camera, 2× 1.3 MP
Field of view 180° horizontal / 60° vertical
Mounting height 2.5 – 5.0 m
Entrance coverage up to 10 m
Accuracy Up to 99,5 %
Power PoE 802.3af / USB-C 5V
Connectivity Wi-Fi 802.11ac, Ethernet (RJ45)
Protection IP65
Operating temperature −10 °C to +50 °C
Dimensions 190 × 80 × 55 mm
Weight 340 g
Certifications CE, FCC, RoHS, GDPR compliant

When to choose Pro?

Comparison with the standard Sauron sensor.

Feature Sauron Standard Sauron Pro
Accuracy ~95% Up to 99,5 %
Technology 2D video analytics 3D stereo sensor
Crowded / high traffic Limited Excellent
Entrance width up to 4 m up to 10 m
IP rating IP40 IP65
Local storage – ✓
Ideal for Small shops, offices Shopping centres, airports, stadiums
